Product Introduction：

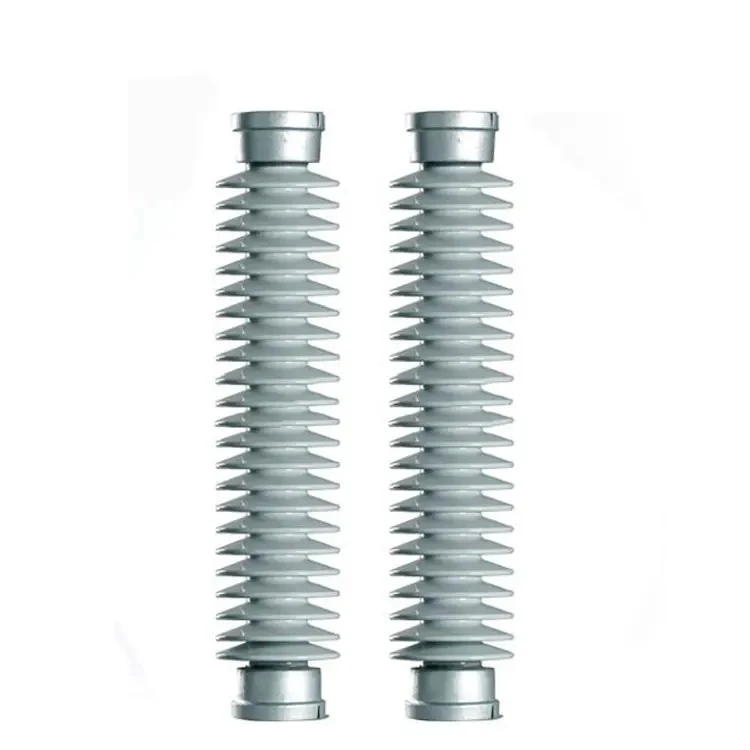

The transformer bushing is the main insulation device outside the transformer box. The lead-out wires of the transformer winding must pass through the insulating bushing to insulate between the lead-out wires and between the lead-out wires and the transformer shell, and at the same time play a role in fixing the lead-out wires. Due to different voltage levels, insulating bushings are available in the form of pure porcelain bushings, oil-filled bushings and capacitor bushings. Pure porcelain bushings are mostly used in transformers of 10kV and below. It is a conductive copper rod inserted in the porcelain bushing, and the inside of the porcelain bushing is air-insulated; oil-filled bushings are mostly used in 35kV transformers. It is filled with oil in the porcelain bushing , put a conductive copper rod in the porcelain bushing, and the copper rod is covered with insulating paper; the capacitive bushing is used for high-voltage transformers above 100kV, and consists of the main insulating capacitor core, the outer insulating upper and lower porcelain parts, the connecting sleeve, and the oil pillow , Spring assembly, base, equalizing ball, measuring terminal, terminal block, rubber gasket, insulating oil, etc.

Product parameter table:

product-837-465

Standard Particulars

Fig No.	Cat.No.	Rated voltag e kV	H	h1	h2	h3	h4	D	d1	d2	d3	d4	d5	d6
1	4944-29	150BIL	216	-	-	-	-	136	95	86	67	-	-	-
1	4944-30	110BIL	190	-	-	-	-	136	95	86	67	-	-	-
1	4944-32	150BIL	216	-	-	-	-	124	82	73	57	-	-	-
1	4944-33	110BIL	190	-	-	-	-	124	82	73	57	-	-	-
2	4824	15	257	79	48	41	25	146	117	89	82	51	-	-
2	4830	25	333	79	48	41	25	146	117	89	82	51	-	-
3	4818-11	15	324	54	54	-	-	140	79	51	60	38	108	98
3	4836-1	15	330	54	60	-	-	152	92	64	60	38	121	114
3	4935-3A	23	406	54	60	-	-	152	92	64	60	38	121	114
3	4931-5	34.5	489	68	52	-	-	194	133	95	76	54	162	165
3	4931-4	34.5	482	54	60	-	-	165	105	76	60	38	133	127
3	4927-6A	46	625	68	38	16	-	187	68	52	60	38	156	165
4	4944-A	15	211	57	38	16	-	127	102	70	64	28	60	90
4	4944-2	15	211	57	38	16	-	105	76	51	64	28	38	71
4	4944-4	25	289	57	38	16	-	105	75	51	64	28	38	71
4	4944-3	25	289	57	38	16	-	127	98	70	64	28	60	94
4	4944-5	34.5	410	57	38	16	-	117	76	51	64	28	38	71
4	4944-1	34.5	410	57	38	16	-	146	102	70	64	28	60	100
4	4944-7	46	562	57	38	16	-	151	102	70	64	28	60	100
